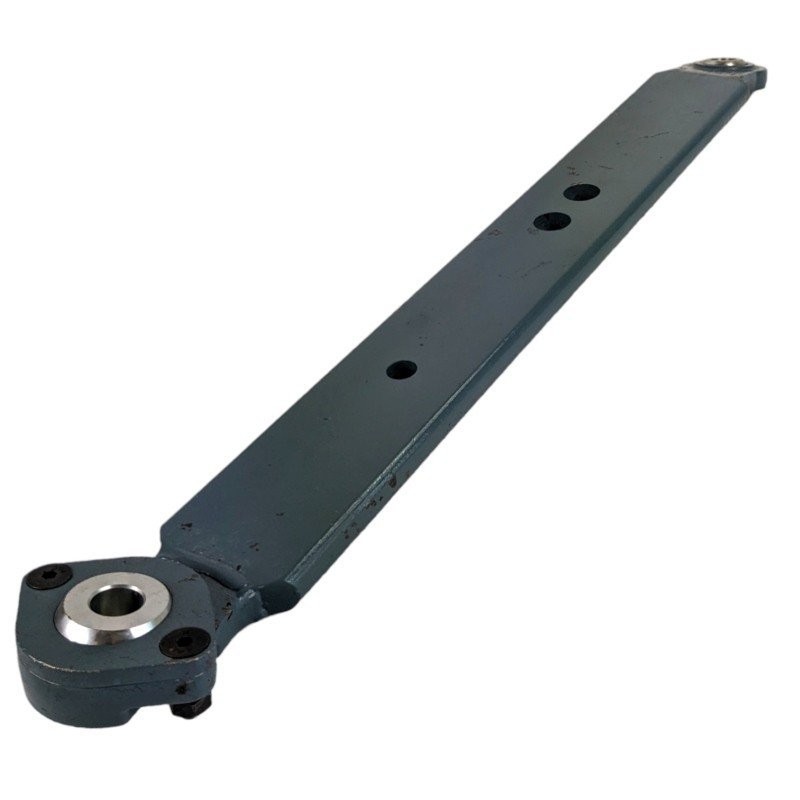

Lower lifting arm for Fiat Oro, 46 ??and 56 series tractors
Lower lift arm of the three-point hitch kit for wheeled Fiat tractors, produced entirely in Italy, high quality equal to the original.
The lower left lifting arm is a fundamental structural component of the three-point hitch kit, it carries out the function of supporting most of the weight of the equipment that is installed on the tractor, therefore it is necessary to monitor the state of the lower lifting arms in order to prevent them from breaking due to wear and consequent slowdowns in work.
Technical characteristics of the lower lifting arm:
Category: First-Second
Plate: 90x20 mm
Length between ball joints: 925 mm
Ball hole diameter: 28.4 mm / 22 mm
Number of central holes: 2
Central hole diameter: 18 mm / 26 mm
Weight: 14.00 kg
Fiat wheeled tractor compatibility:
Gold Series: 550, 550S, 640
Series 46: 55-46, 60-46, 65-46
Series 56: 55-56, 60-56, 70-56_x000D_Material
Steel
Production
Made in Italy
Original code
4981567
Applications
Fiat Gold series tractors, 46 and 56
Weight
14kg
Compatibility
Lower ambidextrous
Dish
90x20mm
Holes
18mm / 26mm
Hole diameter ()
22mm / 28.4mm
