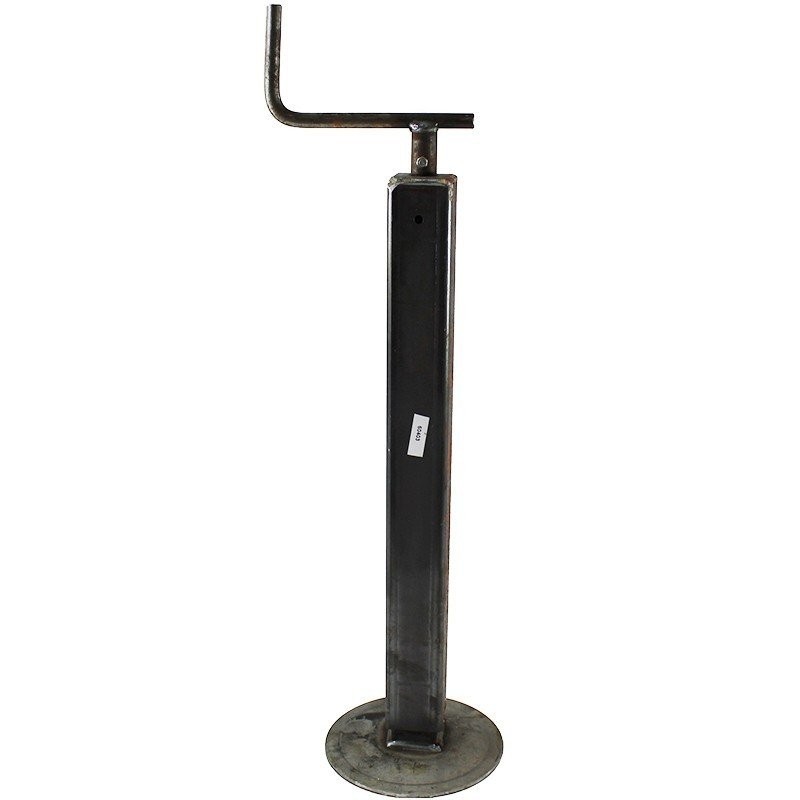

Support foot for agricultural, construction or road trailers. Italian production, supplied without paint to be installed on the greatest number of trailers marketed. Below are the technical characteristics and measurements to check via the image:
square 50 mm
thickness 3 mm
screw diameter 18 mm
screw extension 300 mm
b 470 mm
c 30 mm
d 600 mm
and 180 mm
g 150 mm
the 12 mm
capacity 500 kg
net weight 5.5 kg_x000D_Diameter
50 mm
Thickness
3 mm
