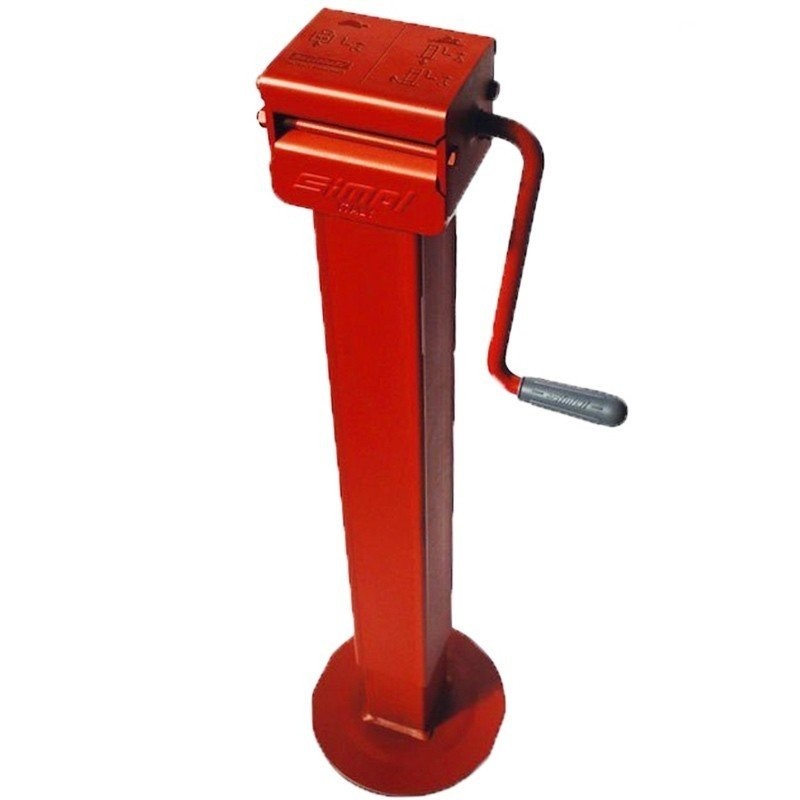

Telescopic servo rudder commonly called support foot for agricultural, construction or road trailers, with lateral crank.
Equipped with thrust bearing and without paint to be installed on the greatest number of trailers marketed.
Below are the technical characteristics and measurements to check via the image:
square 70 mm
thickness 3 mm
screw diameter 23 mm
screw extension 300 mm
b 500 mm
d 630 mm
and 250 mm
g 220 mm
capacity 3000 kg
net weight 12.6 kg_x000D_Brand
Simol
Diameter
70 mm
Production
Made in Italy
Thickness
3 mm
