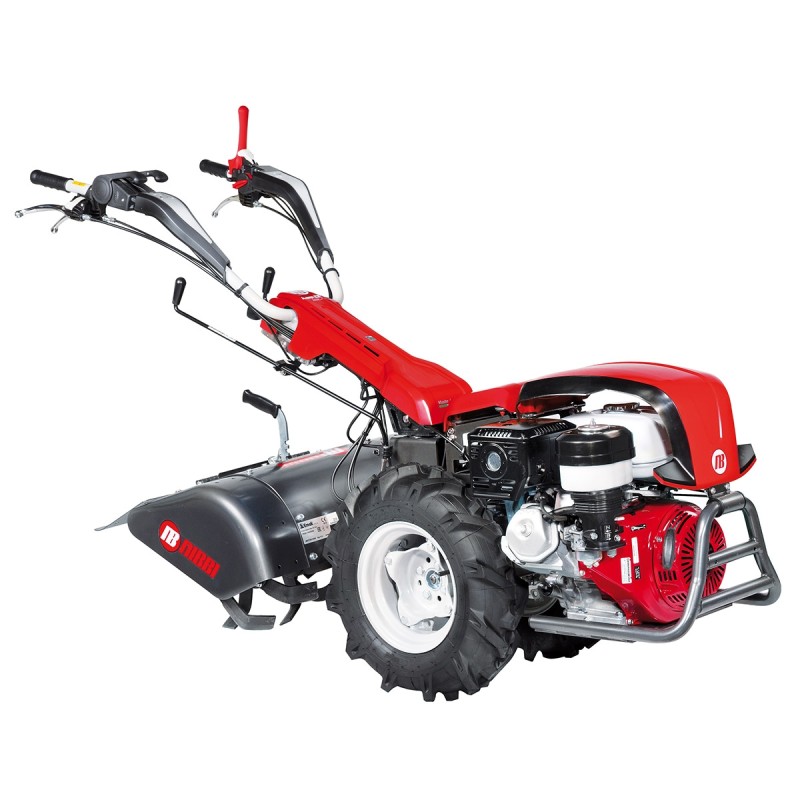

COMPLETE MACHINE ALREADY CONFIGURED NIBBI KAM 13 S MOTOR-CULTIVATOR INCLUDING RUBBER WHEELS 5.0-10 DR AND 70 cm DEBRUSTER WITH QUICKFIT WITH EMAK K 1100 H OHV SELF-CLEARING ENGINE Designed for professional use, with a 3-speed gearbox with differential, it is capable of tackling the most demanding jobs, taking advantage of different engine options. Extremely versatile and safe, thanks to the EHS facilitated clutch control, it combines robustness with manoeuvrability. A wide range of accessories meets the specific needs of each user. RECOMMENDED EQUIPMENT MACHINE COMBINED WITH - 5.0-10 DR tyred wheels Cod. 69209003B - 70 cm rotor with Quickfit Cod. 69219059 TECHNICAL SPECIFICATIONS: Engine: EMAK K 1100 H OHV Fuel: petrol Displacement: - cc Power: 8. 4 Hp Starting: recoil start Gearbox: 6 speeds (3 forward + 3 reverse) Differential: yes Gear shuttle: yes, with lever on handlebar Transmission: with gears in oil bath Clutch: multi-disc dry Clutch handlebars: adjustable on the side, in height and reversible to 180 with anti-vibration device Brakes: yes PTO: independent at 973 rpm Attachment of accessories: QuickFit (optional) Towing hitch: yes Engine bonnet: yes Weight (with diesel engine, tiller and wheels): 130 kg - Differential lever and shuttle are easy to reach and operate - EHS system guarantees ease of use, reduced effort and maximum user-friendliness - QuickFit hitch allows the operator to change attachments without the use of a key ORIGINAL CODE: 68329238E5S2 CZ
68329238E5S2
Data sheet
Alimentazione
Benzina
Cilindrata (cc)
302 cc
Peso a secco (Kg)
130 kg
Tipo avviamento
A strappo
Potenza (Hp)
8.4 Hp
Numero cilindri
1
Marca motore
Emak
Larghezza di taglio (Cm)
70 cm
Tipo di trasmissione
ad ingranaggi in bagno d'olio
CODICE RUOTE
69209003B
CODICE FRESA
69219059
