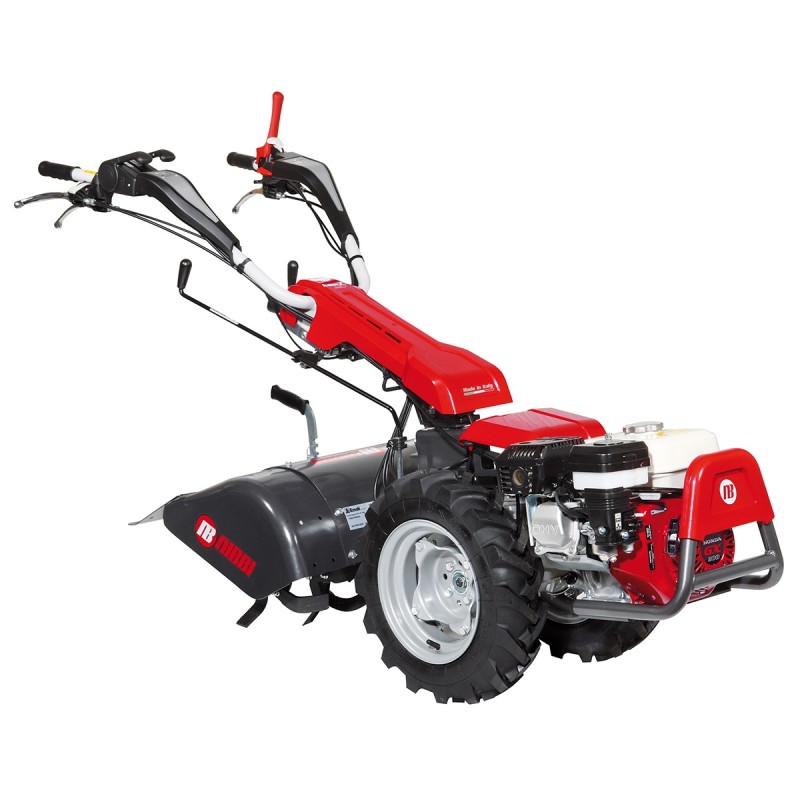

COMPLETE MACHINE ALREADY CONFIGURED NIBBI KAM 7 S MOTOR-CULTIVATOR INCLUDING RUBBER WHEELS 4.00-10 DR AND 60 cm CUTTER WITH PETROL ENGINE HONDA GX 270 OHV 270 cc SELF-POWERING Thanks to the differential with locking lever on the handlebar, which guarantees excellent manoeuvrability and grip, even on difficult or sloping terrain, this machine guarantees ease of use as its strong point. The possibility of using numerous attachments for working the soil, mowing grass and maintaining gardens or urban areas makes it particularly versatile and suitable for the most demanding user and farmer. RECOMMENDED EQUIPMENT MACHINE COMPLETE WITH - 4.00-10 DR tyred wheels Cod. 69209004B - 60 cm rotor (can be reduced to 50 cm) with QuickFit Cod. 69219088 TECHNICAL CHARACTERISTICS: Engine: HONDA GX 270 OHV Fuel: petrol Displacement: 270 cc Power: 8. 4 Hp Starter: self-winding Gearbox: 4 speeds (2 forward + 2 reverse) Differential: yes Gear shuttle: yes, with lever on handlebar Transmission: with gears in oil bath Clutch: multi-disc dry Clutch handlebars: adjustable on the side, in height and reversible to 180 with anti-vibration device Brakes: yes PTO: independent at 973 rpm Accessory hitch: QuickFit (optional) Tow hitch: yes Engine bonnet: no Weight (with diesel engine, tiller and wheels): 120 kg - Differential lever and shuttle are easy to reach and operate - Independently controlled brakes and handlebar-mounted column rotation make manoeuvring on the most difficult terrain easier. - QuickFit coupling that allows the operator to change attachments without the use of keys. ORIGINAL CODE: 68359118E5S1 CZ
68359118E5S1
Data sheet
Alimentazione
Benzina
Cilindrata (cc)
270 cc
Peso a secco (Kg)
120 kg
Tipo avviamento
A strappo
Potenza (Hp)
8.4 Hp
Numero cilindri
1
Marca motore
Emak
Larghezza di taglio (Cm)
60 cm
Tipo di trasmissione
ad ingranaggi in bagno d'olio
CODICE RUOTE
69209004B
CODICE FRESA
69219088
