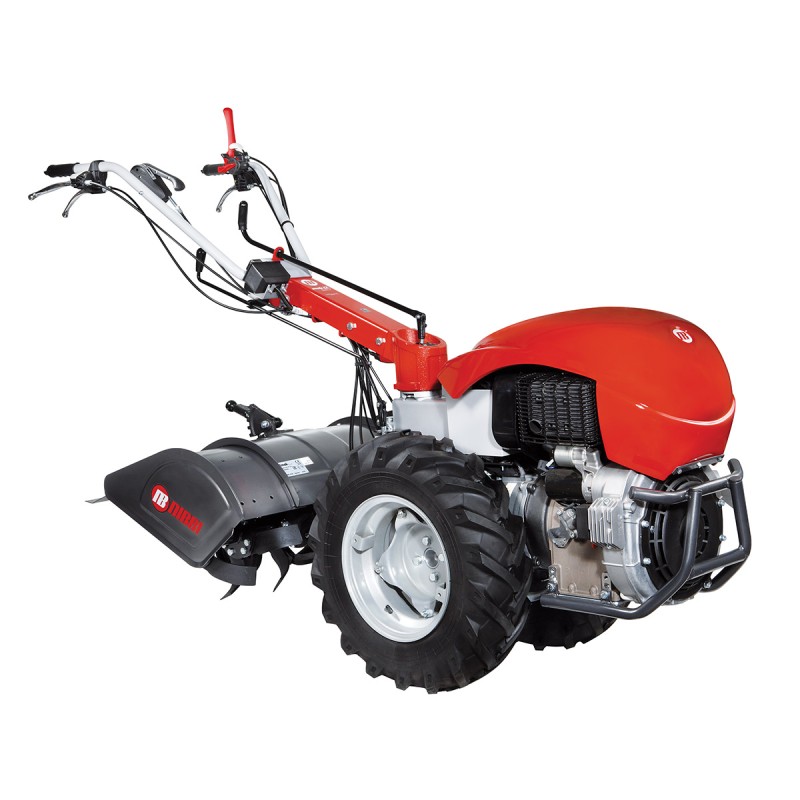

MACHINE WITHOUT TILLER AND WHEELS MOTOR-CULTIVATOR NIBBI MAK 17 S WITH DIESEL ENGINE KOHLER KD 15 440 SELF-REVOLVING START MULTIDISK CLUTCH Professional machine, with power and features that make it ideal for weeding and ploughing operations on all types of terrain. It combines extreme manoeuvrability and versatility with the ability to safely tackle all types of terrain thanks to the self-locking differential combined with the 5-speed gearbox. TECHNICAL CHARACTERISTICS: Engine: Kohler KD 15 440 Fuel: diesel Displacement: 441 cc Power: 10. 9 Hp Starting: recoil start Gearbox: 5 speeds (4 forward + 1 reverse) Differential: yes Gear shuttle: yes, with handlebar lever Transmission: oil-bath gears Clutch: dry multi-disc Handlebars: adjustable side, height and reversible to 180 with anti-vibration device Brakes: yes 2 power take-offs one independent with 2 speeds (1 540 rpm - 2 900 rpm) and one synchronised Attachment: with flanging to the PTO Tow hitch: yes Engine bonnet: yes, with integrated tool holder Weight (with engine, tiller and wheels): 250 kg - The EHS system guarantees ease of use, reduced effort and maximum user simplification - Multi-disc version supplied as standard with Giugiaro-designed bonnet. - Two power take-offs, one independent with two speeds and one synchronised. ORIGINAL CODE: 68339109E5 CZ
68339109E5
Data sheet
Alimentazione
Diesel
Cilindrata (cc)
441 cc
Peso a secco (Kg)
250 Kg
Tipo avviamento
A strappo
Potenza (Hp)
10.9 Hp
Numero cilindri
1
Marca motore
Kohler
Tipo di trasmissione
ad ingranaggi in bagno d'olio
