Telescopic servo rudder 70x850 with 280x80 iron wheel for trailers
€119.60
€130.00
Save 8%Tax included
Supplied with thrust bearing, very high quality, made in Italy
Politiche per la sicurezza(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi(modificale nel modulo Rassicurazioni cliente)

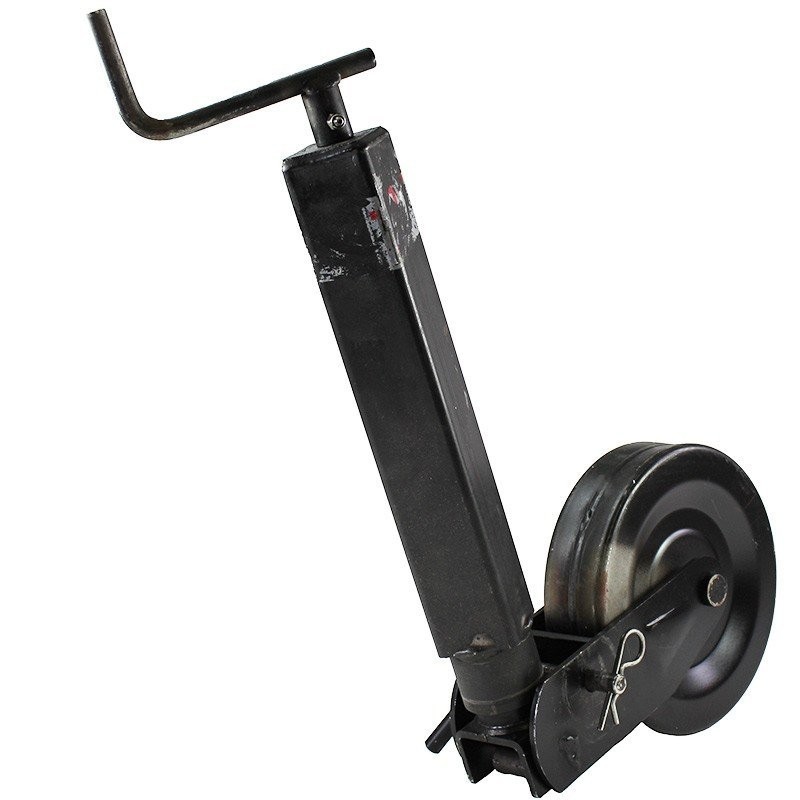

Support foot for agricultural, construction or road trailers, with pin locking wheel. Italian production, supplied without paint to be installed on the greatest number of trailers marketed.
Below are the technical characteristics and measurements to check via the image:
Square: 70 mm
Thickness: 4mm
Screw diameter: 22mm
Screw extension: 250 mm
H: 360mm
B: 490 mm
C: 60mm
D: 1000mm
E: 280 mm
F: 270mm
I: 14 mm
Iron wheels: 280x80
Capacity: 800 kg
Net weight: 14kg_x000D_Production
Made in Italy
Weight
14kg
Framework dimensions
70 mm
Thickness
4 mm
60419
