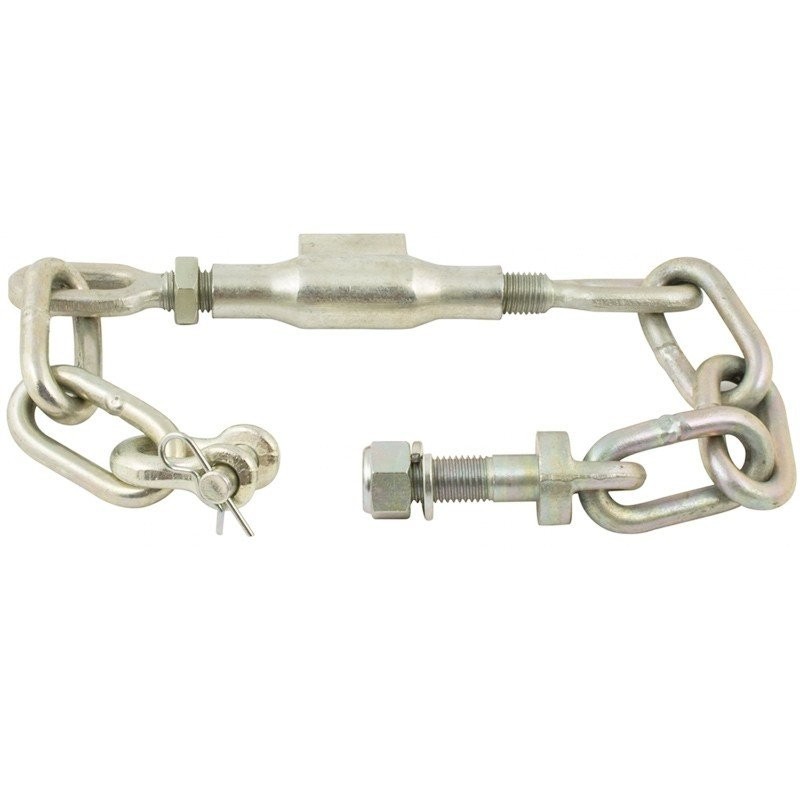

The harness and stabilizer chain for tractors proposed by us is specific to be mounted on all models of agricultural tractors. This is a very important component made up of lateral chains and a central oval fixed part which, thanks to its rotation, has the function of shortening and lengthening the chain itself.
The tractor lift stabilizer chain can be installed to regulate the oscillation of the fixed lateral arms on machines which move during processing, such as harrows or spades, to avoid breaking the lateral arms which do not allow them to move.
The harness chain in the three-point hitch is positioned at the end between the arm and the side reducer.
The harness and stabilizer chain for Same tractors proposed by us is specific to be mounted on the most well-known brands of agricultural tractors such as: Same.
Code: 50296
The chain in question has the following characteristics:
Number of links. 3 + 1
Length minimum: 460 mm (L)
Net weight: 1.6 kg
Mesh diameter: 10 mm
Thread: M16x2 (Df)
F: 18mm
D: 14mm
Harness chains for Same tractors of excellent quality and resistance, useful for the ordinary maintenance of your lifting kit. Check the dimensions to choose the lateral stabilizer chain suitable for your Same tractor.
Contact us for more information and support in choosing the right lateral stabilizer harness chain.
Code
Jerseys
Jerseys
L min
D
Df
F
Use
Original ref.
51054
1 + 1
18
430
14-14
M16X2
22
FIAT
87724774-TK
50093
2 + 2
12
420
14-14
M16X2
22
FIAT
5002501
98156
3 + 3
12
490
12
M16X2
18
FIAT
5002499
50088
1 + 1
12
440
14
M20X2.5
20
SAME
-
50296
3 + 1
10
460
14
M16X2
18
SAME
-
50891
2 + 2
12
515
14
16X2
20
LANDINI
1825444M94
50892
1 + 1
14
500
16
20X2.5
20
TREKKER
3535693_x000D_Applications
Same
Min. Length
460 mm
