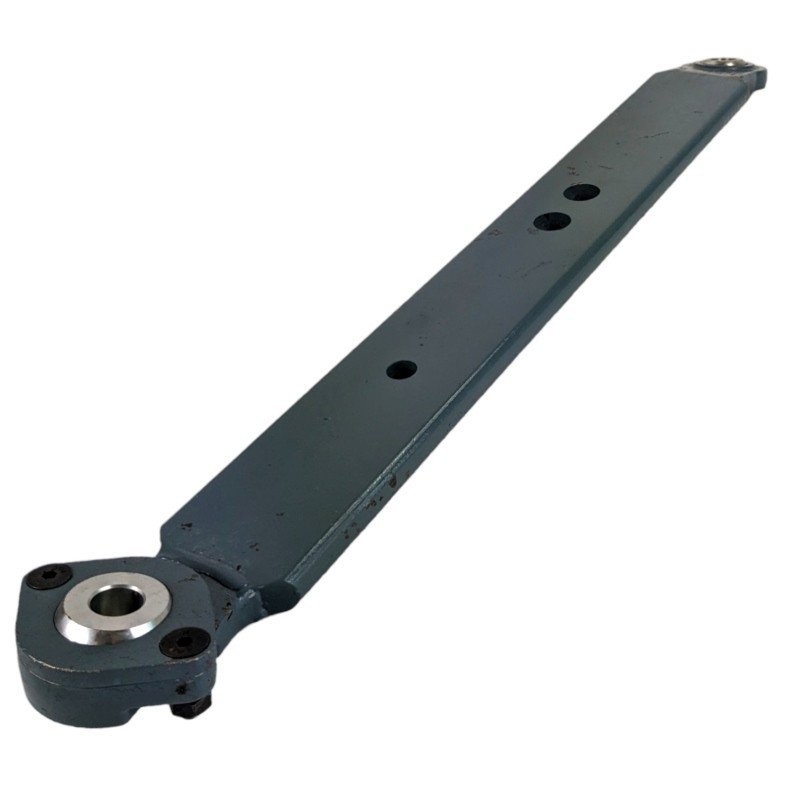

Lower lifting arm for Fiat wheeled tractors
Lower lift arm of the three-point hitch kit for wheeled Fiat tractors, produced entirely in Italy, high quality equal to the original.
The lower left lifting arm is a fundamental structural component of the three-point hitch kit, it carries out the function of supporting most of the weight of the equipment that is installed on the tractor, therefore it is necessary to monitor the state of the lower lifting arms in order to prevent them from breaking due to wear and consequent slowdowns in work.
Technical characteristics of the lower lifting arm:
Category: First
Plate: 75x14 mm
Length between ball joints: 770 mm
Ball hole diameter: 22 mm
Number of central holes: 3
Central hole diameter: 18 mm
Weight: 7.10 kg
Fiat wheeled tractor compatibility:
350
411
415
450
480
500_x000D_Material
Steel
Production
Made in Italy
Applications
Fiat wheeled tractors 350, 411, 450, 480 and 500
Original code
5104699 - 595164
Compatibility
Lower ambidextrous
Dish
75x14mm
Min. Length
7.10 kg
Holes
3 holes 18 mm
Hole diameter ()
22mm
50283
