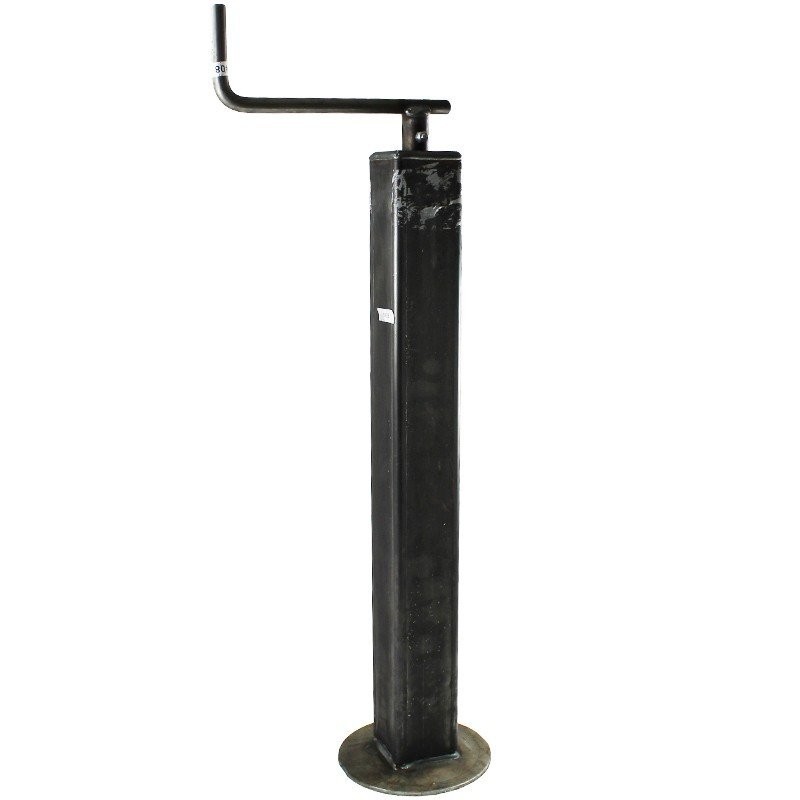

Support foot for agricultural, construction or road trailers. Italian production, supplied without paint to be installed on the greatest number of trailers marketed. Below are the technical characteristics and measurements to check via the image:
square 70 mm
thickness 3 mm
screw diameter 22 mm
screw extension 480 mm
b 670 mm
c 50 mm
d 820 mm
and 210 mm
g 165 mm
the 14 mm
capacity 800 kg
net weight 11 kg_x000D_Diameter
70 mm
Thickness
3 mm
