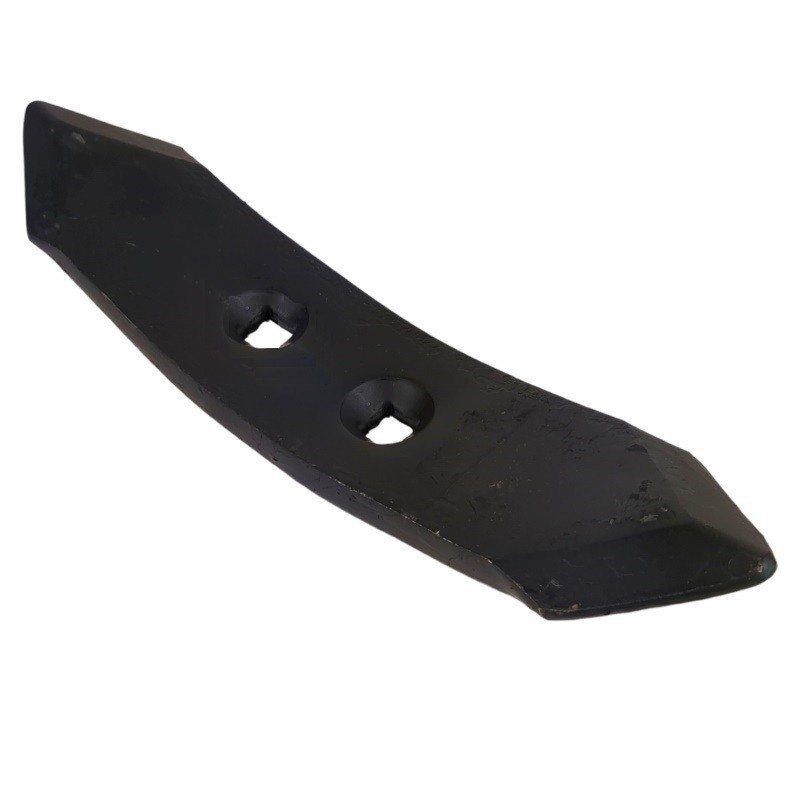

Reversible share for CHISEL springs for grubbers and cultivators
Reversible plowshare, also called double-pointed plowshare for chisel springs for grubbers and cultivators, produced in Italy, made of high resistance steel.
The two-pointed plowshares are installed on the final part of the flexible springs of the grubber and hybrid cultivators and are the part of the equipment that works in contact with the ground. For this reason it often happens that they get damaged during work, but with this type of plowshare you just need to dismantle them and turn them over to immediately have a new tip available.
The double pointed share is compatible with CHISEL 55x20 mm, M12x50 oval head fixing bolt.
Reversible ploughshare technical features:
Section: 55x15 mm
Length: 360mm
Width: 55mm
Holes: 12 mm
Hole spacing: 60 mm
Folding: 16 mm
Thickness: 15mm
Weight: 2,150 kg
Compatible CHISEL springs: 55x20 mm
Fixing bolt: Oval Head M12x50
Remember to always order spare double-ended plowshares for your grubber so you don't have to stop work at the best moment!_x000D_Material
High resistance steel
Production
Made in Italy
Applications
CHISEL springs 55x20
Weight
2.15 kg
Compatibility
Hybrid grubbers and cultivators
Length
360 mm
Total width
55 mm
Dish
55x15mm
Thickness
15 mm
