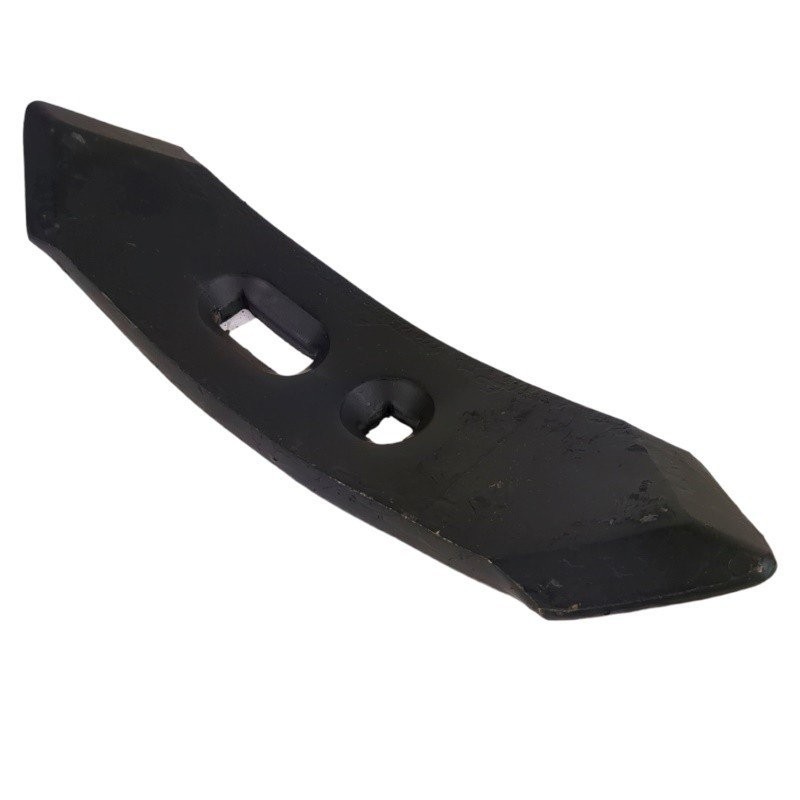

Reversible share for CHISEL springs for grubbers and cultivators
Reversible ploughshare, also called double-pointed ploughshare for Chisel springs for grubbers and cultivators, with two holes, one of which is a slot, produced in Italy, made of high-resistance steel.
The two-pointed plowshares are installed on the final part of the flexible springs of the grubber and hybrid cultivators and are the part of the equipment that works in contact with the ground. For this reason it often happens that they get damaged during work, but with this type of plowshare you just need to dismantle them and turn them over to immediately have a new tip available.
The double-pointed plowshare is compatible with Chisel springs 55x20 mm AL55481, countersunk head fixing bolt M12x50 and M12x60 codes AL55382 and AL55835.
Reversible ploughshare technical features:
Section: 55x15 mm
Length: 400mm
Width: 55mm
Holes: 12 mm
Hole spacing: 45/65 mm
Folding: 16 mm
Thickness: 15mm
Weight: 2,450 kg
CHISEL springs: 55x20 mm
Fixing bolt: Countersunk head M12x50 and M12x60
Remember to always order spare double-ended plowshares for your grubber so you don't have to stop work at the best moment!_x000D_Material
High resistance steel
Production
Made in Italy
Applications
CHISEL springs 55x20 mm
Weight
2.50 kg
Compatibility
Hybrid grubbers and cultivators
Length
400 mm
Total width
55 mm
Dish
55x15mm
Thickness
15 mm
